Code samples

The 10x Resume code samples page offers candidates an opportunity to present code demonstrating code they’ve written as a software engineer.

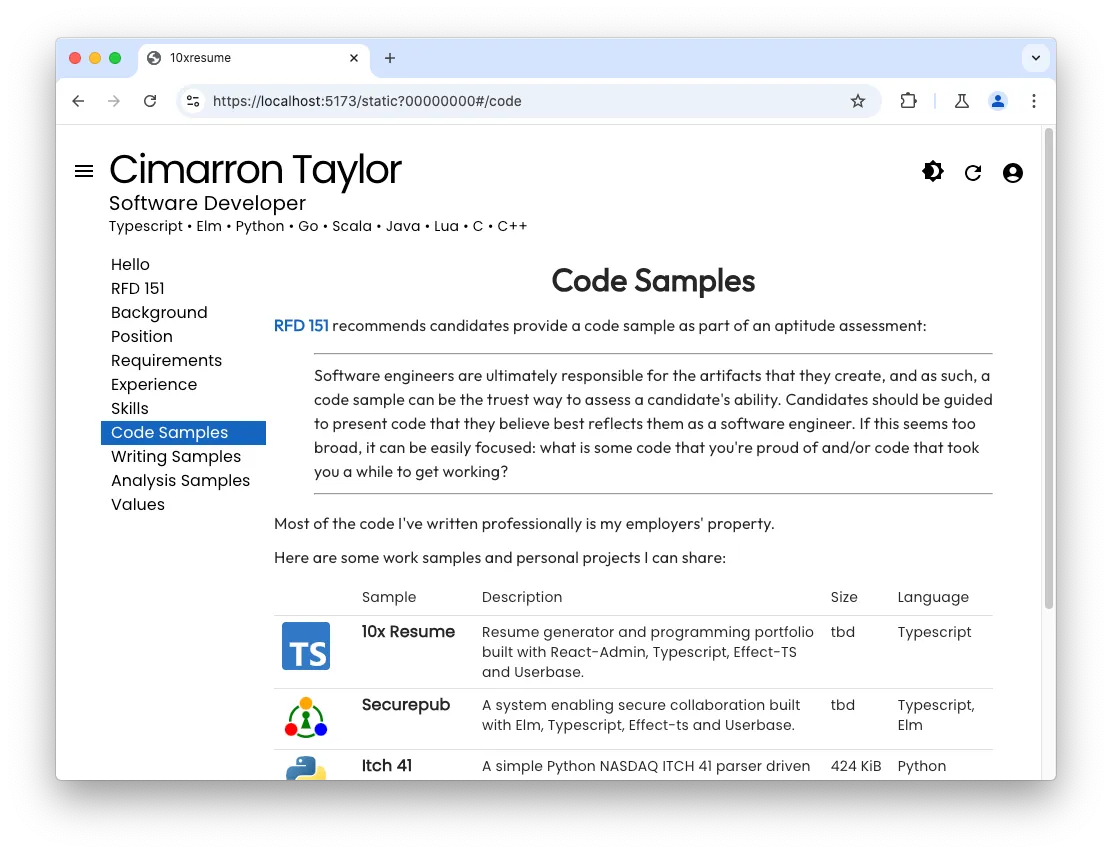

Sample List

The code samples page presents a list of the samples the candidate has prepared. Each sample in the list includes a short description, the size of the sample and its language.

Clicking on a 10x Resume sample downloads the files to the browser. Reviewers can choose to skip large samples if their time or bandwidth is limited.

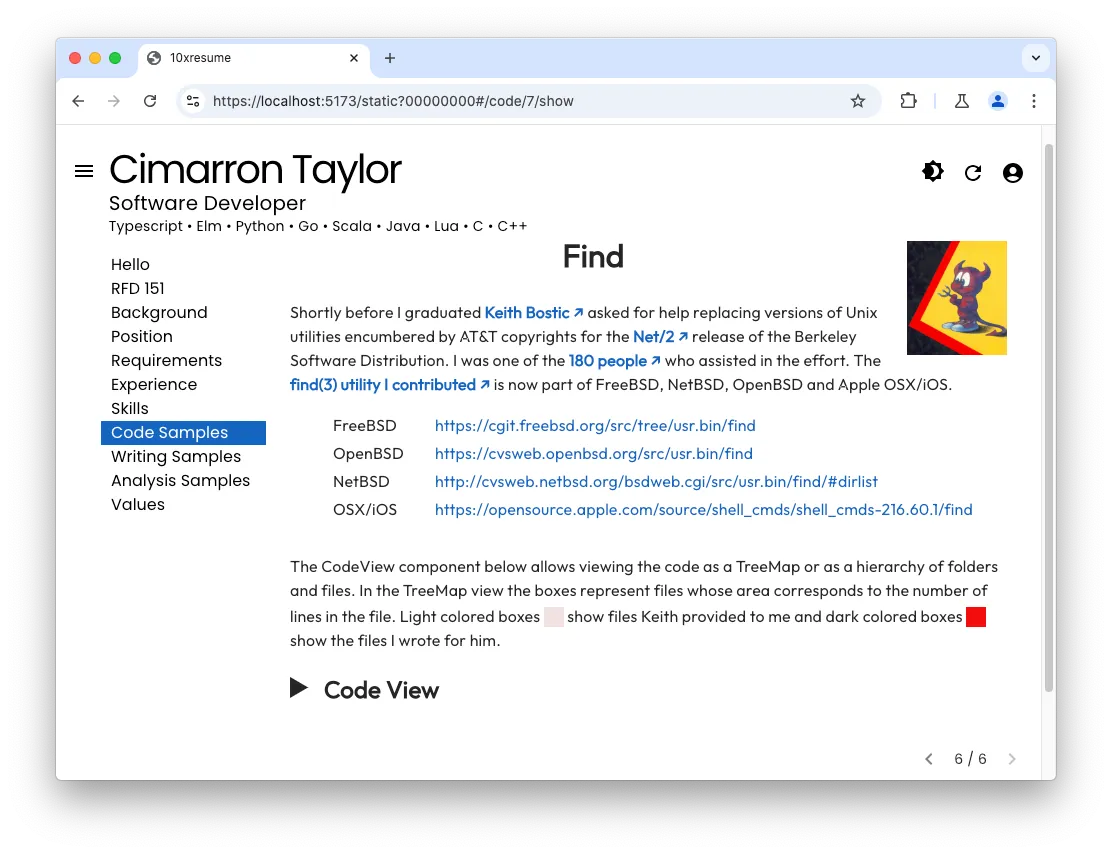

Selected Sample

Selecting one of the samples in the list navigates to a view showing additional details about the selected sample.

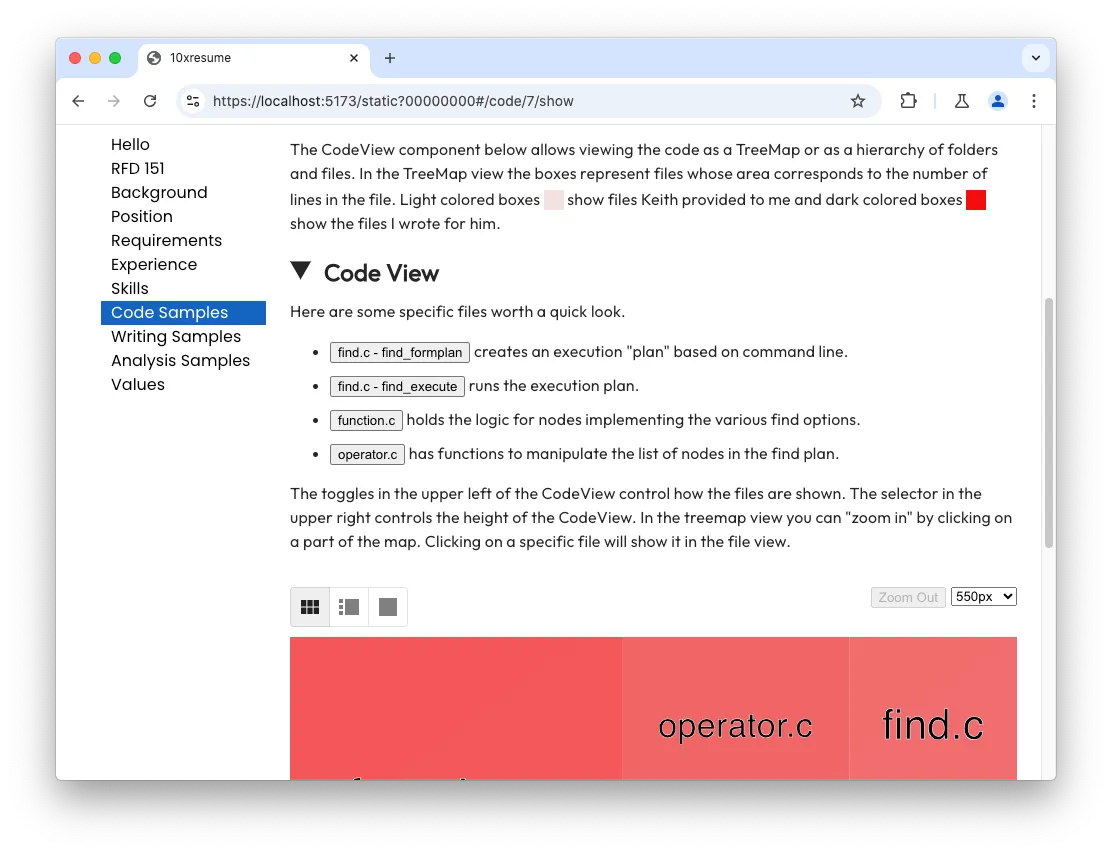

Code View

Candidates may use the 10x Resume Code View component to call attention to specific parts of the code reviewers may want to explore.

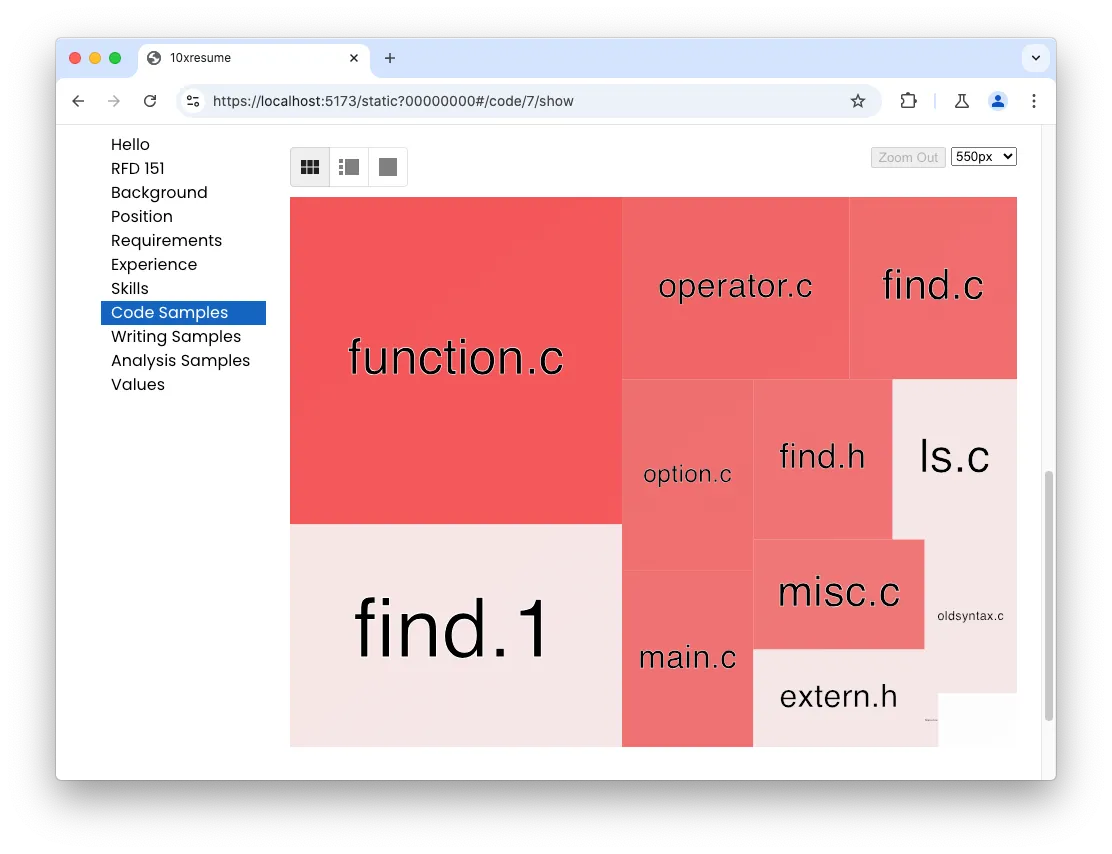

Tree Map view

Code samples may be viewed as a Tree Map to see a high-level overview of the code.

Candidates specify the size and color of each item when they prepare their code sample. 10x Resume recommends using sizes based on the file sizes and colors correlated with candidate’s contribution to the file.

Reviewers may navigate the view by selecting a directory or file.

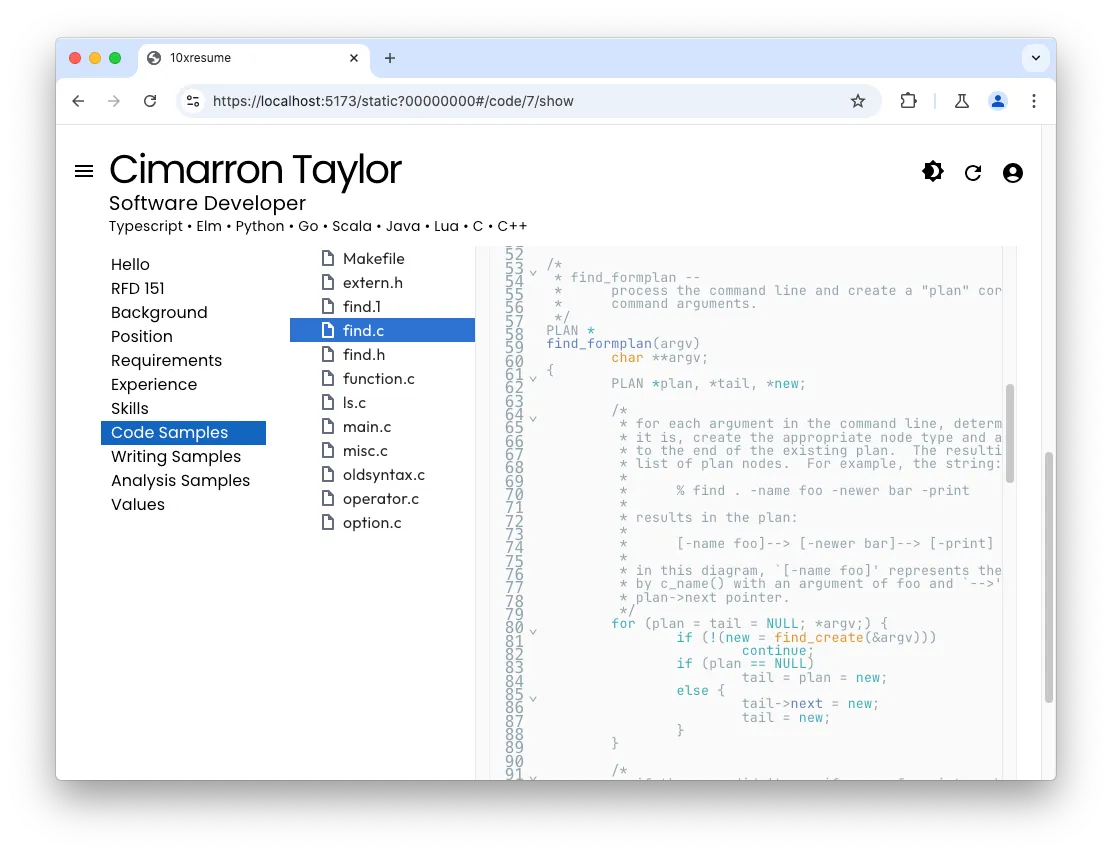

File Tree view

Reviewers may also switch to a traditional tree view with directories and files on the left and content of the selected file on the right.

The 10x Resume File Tree view

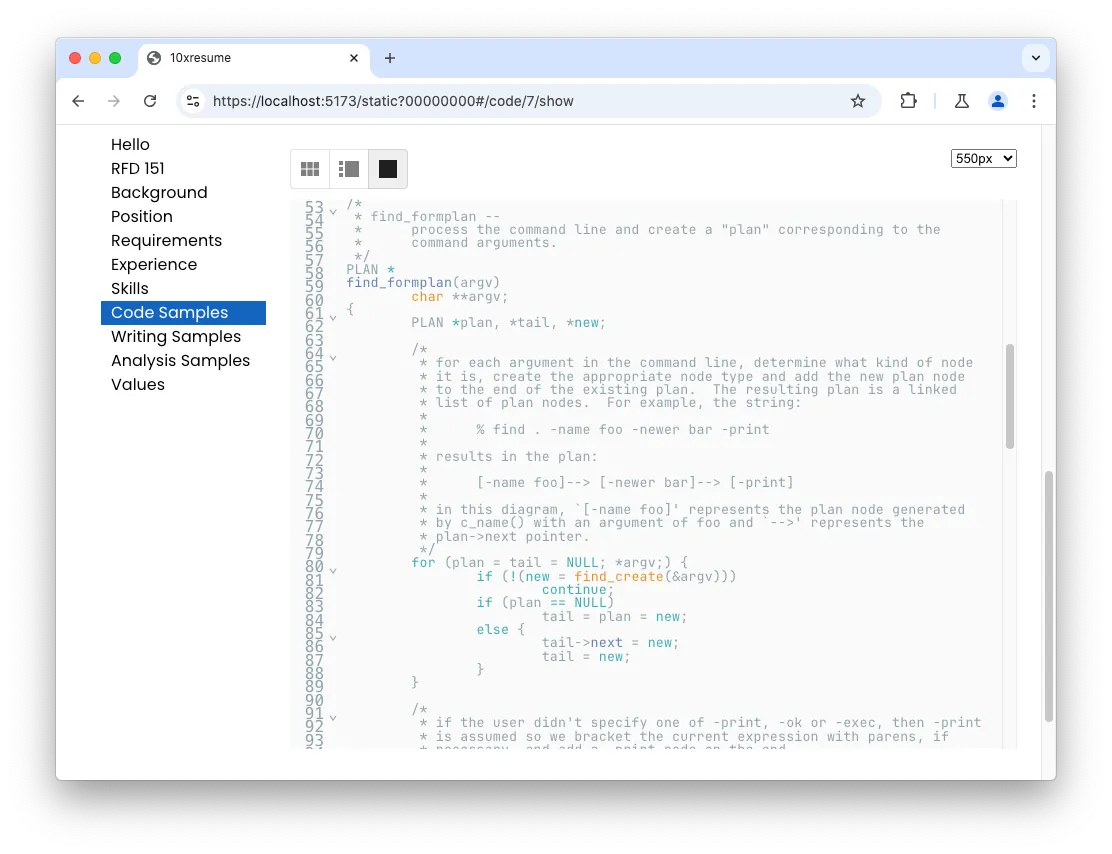

Single File view

Reviews may switch to the Single File view to dismiss the tree view and focus on the code.

10x/code.*.md

Directorydev
- DirectoryJob
  - DirectoryPortfolio
    DirectorySrc
    Directory10x
    code.1.md
    code.2.md
    …

Each of the code.*.md markdown files in the Job/Portfolio/Src/10x directory hold details about a code sample a candidate has shared.

The markdown content of each file holds the content presented when the sample is selected.
The frontmatter of each file holds a code resource and an optional code_zip resource. The code resource has the following fields:

Field	Description
id	the id of the resource
kind	the constant string ‘code’
html	path to result html describing the code
icon	the icon associated with the code sample in light mode
dark	the icon associated with the code sample in dark mode
name	the name of the sample shown as a title
desc	a short description of the sample to show in the sample list
lang	languages of the sample to show in the sample list
codedir	subdirectory containing the sample files
size	size of the sample to show in the sample list

The code_zip resource has the following fields:

Field	Description
id	the id of the resource
kind	the constant string ‘code_zip’
subdir	subdirectory with associated code samples

Example code.7.md

---
title: Find
layout: Plain.html
resources:
  - id: 7
    kind: code
    html: code.7/index.html
    icon: icons.1/bsd.gif
    dark: icons.1/bsd.gif
    name: Find
    desc: The find(3) utility used by billions of FreeBSD, NetBSD, OpenBSD and Apple OSX/iOS systems.
    lang: C
    codedir: find
    size: 128 KiB
    nozip: false

  - id: 7
    kind: code_zip
    subdir: code.7
---

<style>
.Sample h1                { text-align:center; }
.Sample table             { margin-left: 40px; }
.Sample td:nth-of-type(1) { width: 100px; }
</style>
<div class="Sample">
<img style="float: right; width: 100px; margin: 10px;" src="/10x/icons.1/bsd.gif"/>

# {{title}}

Shortly before I graduated **[Keith Bostic ↗︎][]** asked for help replacing versions
of Unix utilities encumbered by AT&T copyrights for the **[Net/2 ↗︎][]** release
of the Berkeley Software Distribution.  I was one of the **[180 people︎ ↗︎][]** who
assisted in the effort. The **[find(3) utility I contributed ↗︎][]** is now part
of FreeBSD, NetBSD, OpenBSD and Apple OSX/iOS.

|              |                                                    |
| ------------ | -------------------------------------------------- |
| FreeBSD      | <https://cgit.freebsd.org/src/tree/usr.bin/find>   |
| OpenBSD      | <https://cvsweb.openbsd.org/src/usr.bin/find>      |
| NetBSD       | <http://cvsweb.netbsd.org/bsdweb.cgi/src/usr.bin/find/#dirlist> |
| OSX/iOS      | <https://opensource.apple.com/source/shell_cmds/shell_cmds-216.60.1/find> |

<br/>

The CodeView component below allows viewing the code as a TreeMap or as a hierarchy
of folders and files.  In the TreeMap view the boxes represent files whose area
corresponds to the number of lines in the file.  Light colored boxes
<svg width="20px" height="20px" style="transform: translate(0px, 5px);">
<rect fill="rgb(244, 224, 224)" fillOpacity=".75" width="20px" height="20px"></rect>
</svg>
show files Keith provided to me and dark colored boxes
<svg width="20px" height="20px" style="transform: translate(0px, 5px);">
<rect fill="rgb(242, 13, 13)" fillOpacity=".75" width="20px" height="20px"></rect>
</svg>
show the files I wrote for him.


<style>
summary {
  outline: unset !important;
}
summary::marker {
  font-size: 2em;
}
</style>


<details>
<summary><h2 style="display: inline;">Code View</h2></summary>

Here are some specific files worth a quick look.

* {% include "sidebar-button.html", label:"find.c - find_formplan", path:"/find.c", pos:"700"
  %} creates an execution "plan" based on command line.

* {% include "sidebar-button.html", label:"find.c - find_execute", path:"/find.c", pos:"1900"
  %} runs the execution plan.

* {% include "sidebar-button.html", label:"function.c", path:"/function.c", pos:"775"
  %} holds the logic for nodes implementing the various find options.

* {% include "sidebar-button.html", label:"operator.c", path:"/operator.c", pos:"600"
  %} has functions to manipulate the list of nodes in the find plan.

The toggles in the upper left of the CodeView control how the files are shown.
The selector in the upper right controls the height of the CodeView.
In the treemap view you can "zoom in" by clicking on a part of the map.
Clicking on a specific file will show it in the file view.

<br/>

<div id="codeview"></div>
</details>

[find(3) utility I contributed ↗︎]: https://github.com/jonathangray/csrg/tree/master/usr.bin/find
[Net/2 ↗︎]: https://en.wikipedia.org/wiki/History_of_the_Berkeley_Software_Distribution#Net/2_and_legal_troubles
[Keith Bostic ↗︎]: https://en.wikipedia.org/wiki/Keith_Bostic_\(software_engineer\)
[180 people︎ ↗︎]: https://www.usenix.org/about/awards/flame#csrg

</div>

10x-files/code.*

Directorydev
- DirectoryJob
  - DirectoryPortfolio
    Directory10x-files
    Directorycode.7
    Directoryfind
    Directory.codeview
    filetree.sh
    filetree.json
    highlight.json
    Makefile
    extern.h
    find.1
    find.c
    …

Each code.* subdirectory of Job/Portfolio/Src/10x-files holds code shown in the Code View.

A special .codeview directory has files with data shown in the Tree Map and File Tree views:

File	Description
filetree.json	file index with areas of each file shown
highlight.json	file index with areas which determine highlight coloring

Example filetree.json

{
  "name": "",
  "area": 74978,
  "children": [
    { "name": "option.c", "area": 4716 },
    { "name": "ls.c", "area": 3736 },
    { "name": "find.h", "area": 4185 },
    { "name": "Makefile", "area": 138 },
    { "name": "find.1", "area": 13863 },
    { "name": "function.c", "area": 20381 },
    { "name": "oldsyntax.c", "area": 2661 },
    { "name": "main.c", "area": 4335 },
    { "name": "extern.h", "area": 3134 },
    { "name": "operator.c", "area": 7768 },
    { "name": "misc.c", "area": 3535 },
    { "name": "find.c", "area": 5732 }
  ]
}

Example highlight.json

{
  "name": "",
  "area": 0,
  "children": [
    { "name": "Makefile", "area": 5 },
    { "name": "extern.h", "area": 5 },
    { "name": "find.1", "area": 5 },
    { "name": "find.c", "area": 5732 },
    { "name": "find.h", "area": 4185 },
    { "name": "function.c", "area": 20381 },
    { "name": "ls.c", "area": 5 },
    { "name": "main.c", "area": 4335 },
    { "name": "misc.c", "area": 3535 },
    { "name": "oldsyntax.c", "area": 5 },
    { "name": "operator.c", "area": 7768 },
    { "name": "option.c", "area": 4716 }
  ]
}

Example filetree.sh script to create the json files

#!/bin/bash -euo pipefail
#
# create simple filetree for find code using bash, wc, jq and python
#

mkdir -p .codeview

TMP=.codeview/tmp.$$                                    # temporary file
trap "rm -f $TMP" SIGINT SIGTERM EXIT                   # remove on exit

   wc `find . -type f -depth 1` \
 | jq -MRs '                                            # read everything as one string

def parse:
    split(" ")                                          # convert to array of fields
  | map(select(.!=""))                                  # keep only words e.g. ["","","1"] ──▶ ["1"]
  | if . == [] then empty else . end                    # drop blanks
  | {name:.[3], area:(.[2]|tonumber)}                   # convert to object
  | if .name|startswith("./") then . else empty end     # only keep files
  | .name = .name[2:]                                   # strip leading ./
  ;

def data: split("\n") | map(parse) ;                    # everything as [{name,area}] array

{                                                       # final output
  name:    "",
  area:    (data | map(.area) | add),
  children: data
}
' > $TMP


python3 >.codeview/filetree.json <<EOF
with open("$TMP") as f:                                 # make the final output a little more compact e.g.
     s = f.read()                                       #
     s = s.replace("\n     ","")                        #  "children": [
     s = s.replace("\n    }"," }")                      #    { "name": "option.c", "area": 4716 },
     print(s, end="")                                   #    ...
EOF

cp .codeview/filetree.json .codeview/highlight.json
