Analysis samples

The 10x Resume analysis samples page allows candidates to explain their investigations of engineering defects they’ve encountered.

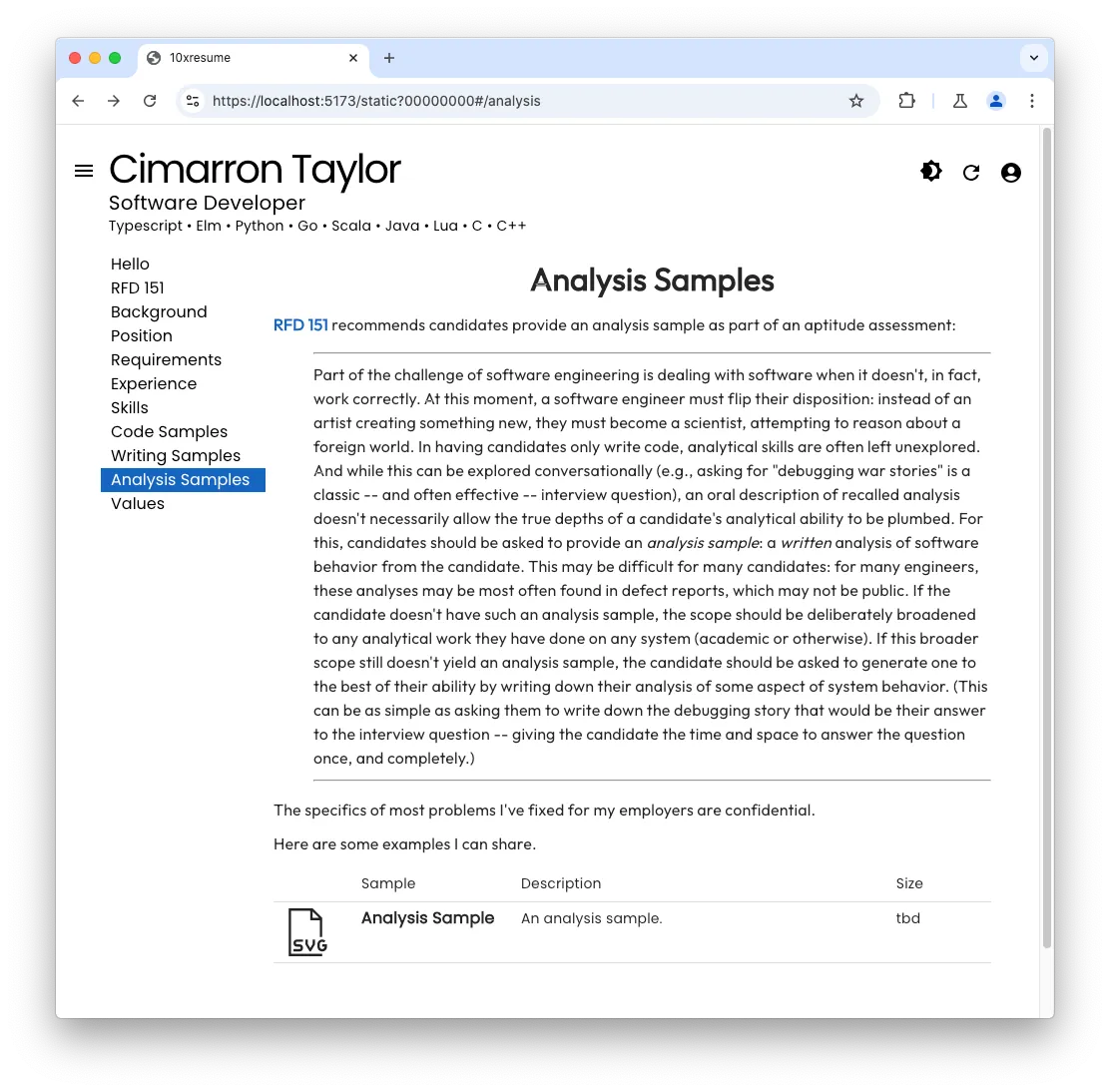

Sample List

The analysis samples page presents a list of the samples the candidate has prepared. Each sample in the list includes a short description and the size of the sample.

Clicking on a 10x Resume sample downloads the files to the browser. Reviewers can choose to skip large samples if their time or bandwidth is limited.

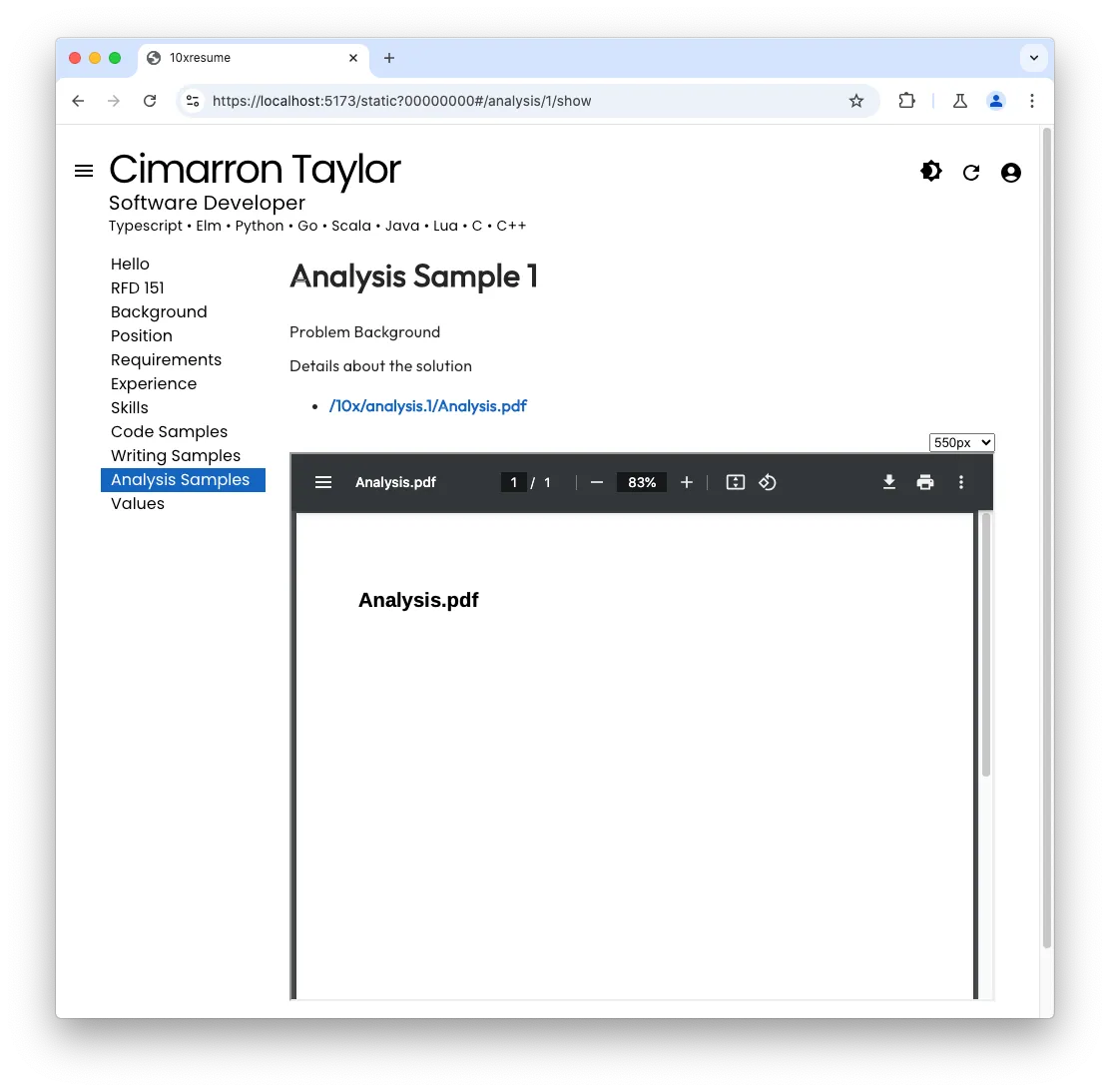

Selected Sample

Selecting one of the samples in the list navigates to a view showing additional details about the selected sample which may include documents shown inline or in a separate iframe.

10x/analysis.*.md

Directorydev
- DirectoryJob
  - DirectoryPortfolio
    DirectorySrc
    Directory10x
    analysis.1.md
    …

Each of the analysis.*.md markdown files in the Job/Portfolio/Src/10x directory hold details for one of the candidate’s analysis samples.

The markdown content of each file holds the content presented when the sample is selected.
The frontmatter of each file holds an analysis resource and an optional analysis_zip resource. The analysis resource has the following fields:

Field	Description
id	the id of the resource
kind	the constant string ‘analysis’
html	path to result html describing the analysis sample
icon	the icon associated with the sample in light mode
dark	the icon associated with the sample in dark mode
name	the name of the sample shown as a title
desc	a short description of the sample to show in the sample list
size	size of the sample to show in the sample list

The analysis_zip resource has the following fields:

Field	Description
id	the id of the resource
kind	the constant string ‘analysis_zip’
subdir	subdirectory with associated analysis sample files

Example analysis.1.md

---
title: Analysis Sample 1
layout: Plain.html
source: /10x/analysis.1/Analysis.pdf
resources:
  - id: 1
    kind: analysis
    html: analysis.1/index.html
    icon: icons.1/icon.svg
    dark: icons.1/dark.svg
    name: Analysis Sample
    desc: An analysis sample.
    size: 8 KiB
    nozip: false

  - id: 1
    kind: analysis_zip
    subdir: analysis.1
---

# {{title}}

Problem Background

Details about the solution

* **[{{source}}]({{source}})**

{% include "set-height.html", iframe:"iframe1" %}

<iframe
  id="iframe1"
  title="{{title}}"
  src="{{source}}"
  width="100%"
  height="550px"
></iframe>

10x-files/analysis.*

Directorydev
- DirectoryJob
  - DirectoryPortfolio
    Directory10x-files
    Directoryanalysis.1
    Analysis.pdf
